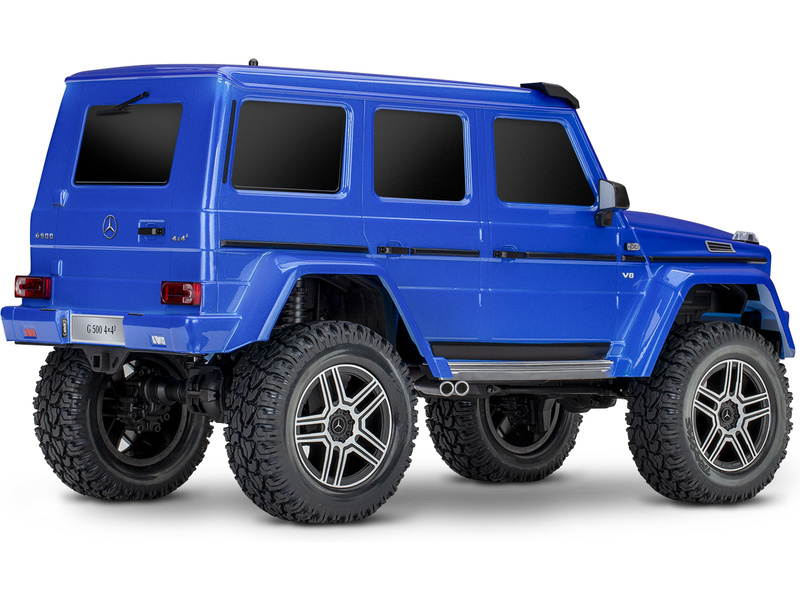

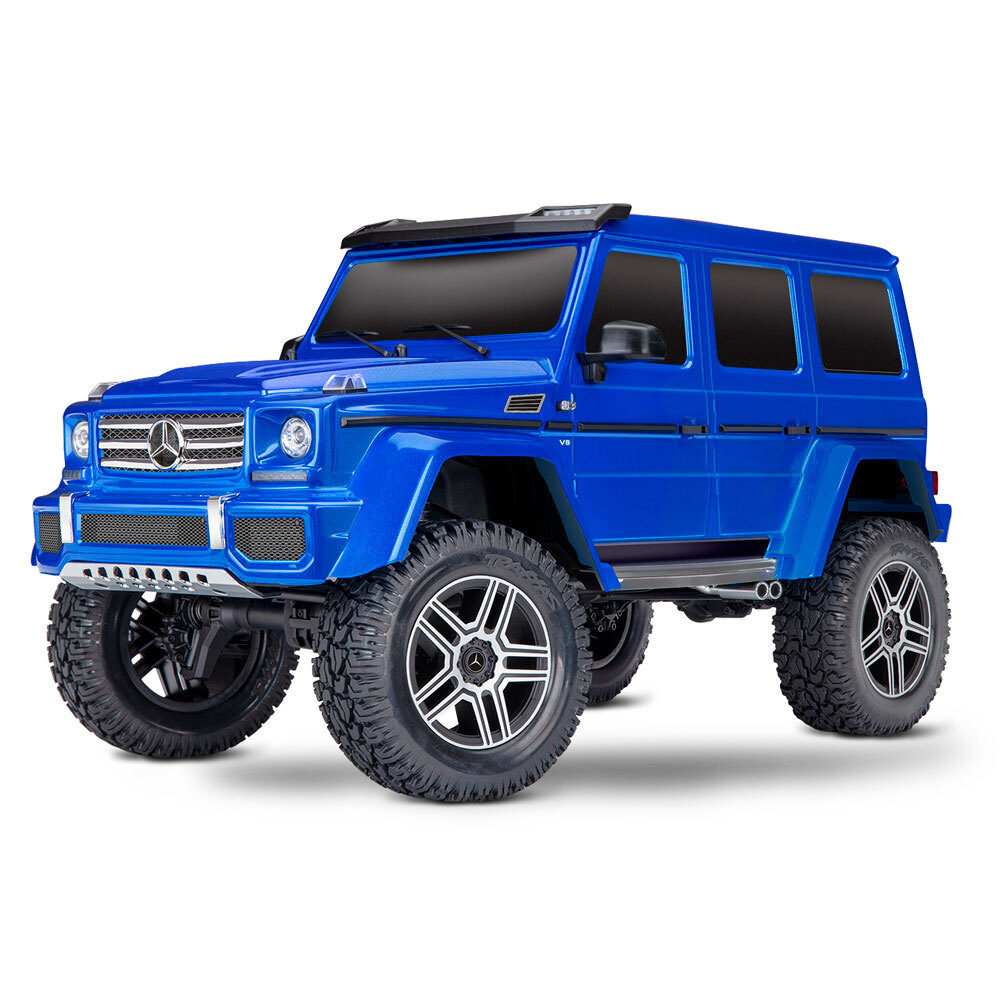

The TRX-4 Mercedes-Benz G 500 4X4 replicates the original truck down to the smallest detail. Chrome exhaust pipes and grille, side molding, and precisely replicated LED-ready lenses capture the full-size truck with replica 5-spoke wheels riding on portal axles. The G 500 4X4 comes loaded with all the great TRX-4 features available in a blue painted body.

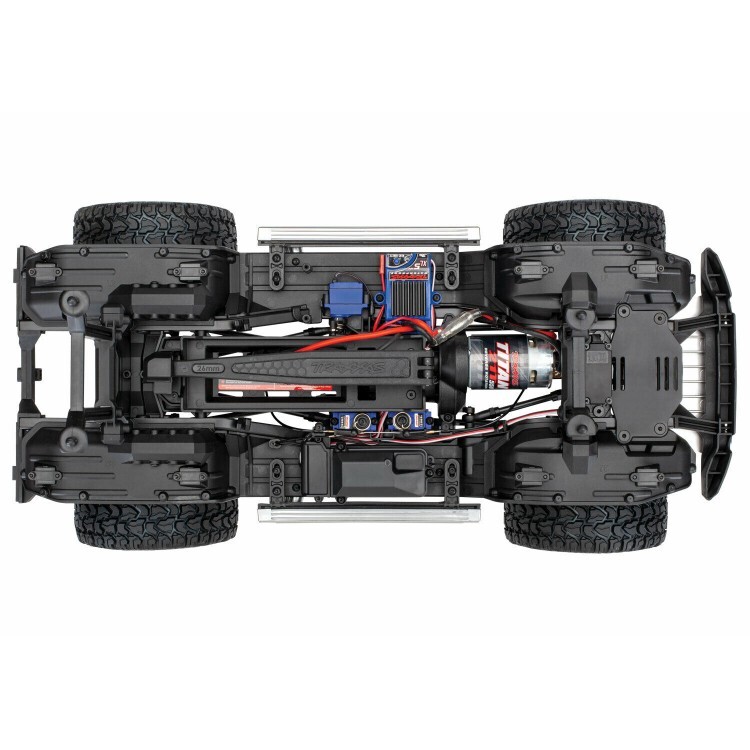

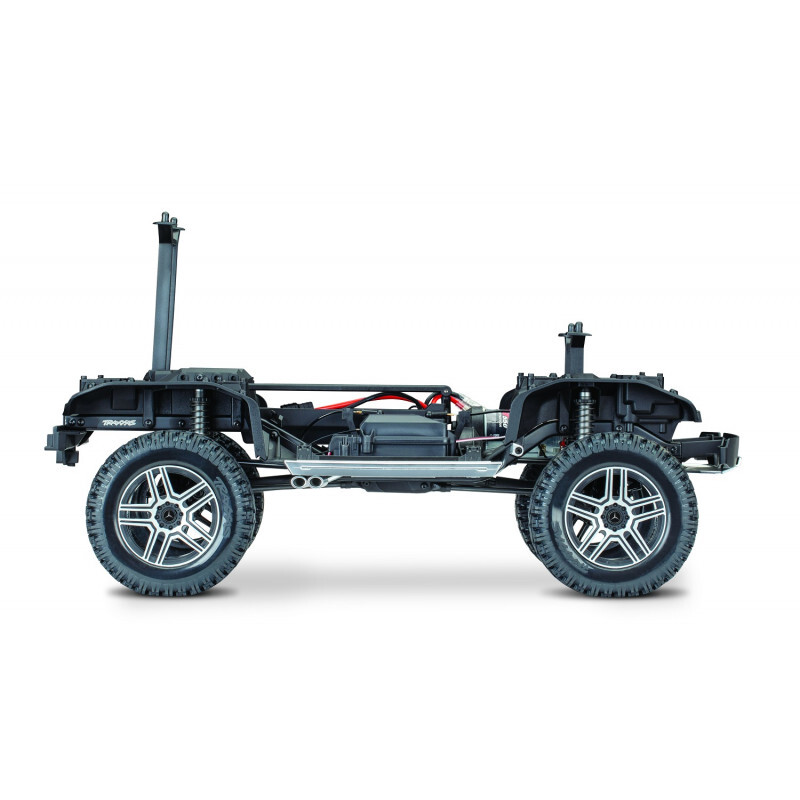

Chassis - TRX-4 Mercedes-Benz G 500 4X4
TRX-4 Mercedes-Benz G 500 4X4
MODEL 82096-4: 1/10 Scale 4X4 Trail Truck, Fully-Assembled, Waterproof electronics,
Ready-To-Drive with TQi 2.4GHz 4-channel Radio System, XL-5 HV Speed Control,
Hi/Low Transmission, Remote Locking Differentials, and painted body

Features:

• Authentic Mercedes-Benz G 500 4X4² Body
  • Scale details: chrome grille, front skid plate, side mirrors, side trim, windshield visor with light buckets, door handles, wipers, and dual side exhaust
  • Clear front headlight lenses, marker lights, hood blinkers, and colored tail lights accept LED light kit
  • Authentic decal sheet
  • Full Nylon composite wheel wells and floor pans
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode €� forward / brake / reverse
    • Race Mode €� forward / brake / no reverse
    • Training Mode €� 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode €� forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode €� forward / instant reverse - no neutral with 100% hill holding brake
  • Traxxas EZ-Set one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6€œ7 cell NiMH (7.2€œ8.4V) and 2€œ3S LiPo (7.4€œ11.1V)
  • Two stage low voltage protection (LVD)
• Titan 550 Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• TQi 2.4 GHz Radio System
  • TQi 2.4 GHz 4-channel transmitter
  • 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • Patented waterproof receiver box with easy-access plug
• Rigid Steel Frame
  • 5mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock sliders with caps adjust for width
  • Wire routing clips integrated into frame rails
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
