Overview

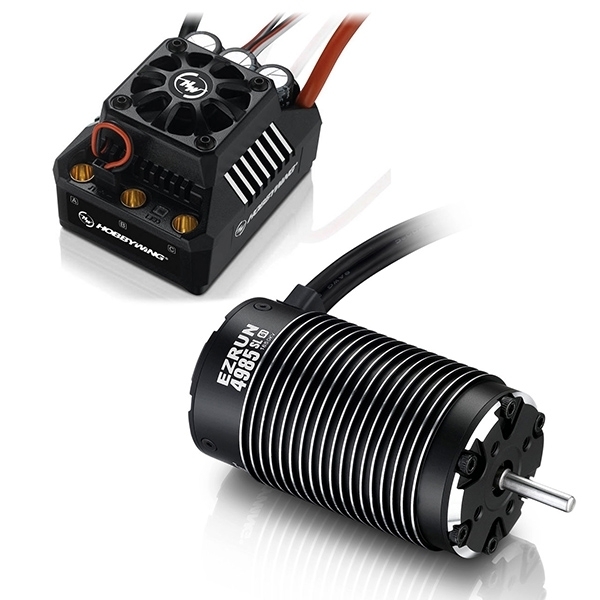

The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 4985SL 1/7 scale, 1650kV motor and is a great option for high-end, aggressively powered 3S - 6S builds.
Specifications
Motor:
- Model: 4985SL-1650KV
- Pole: 4
- KV (No-load): 1650KV
- Resistance: 0.0053 Ω
- Current (No-load): 5.4 A
- Max. Output Power: 5700 W
- Current at the point of M.O.P: 160 A
- Motor Diamter: 49mm
- Motor Length: 86.5mm
- Shaft Diameter: 5.0mm
- Shaft Length: 21.5mm
- LiPo Cells: 3-6
- Weight: 587g (20.71oz)
- Applications: 1/6th & 1/7th RC Vehicles
ESC:
- Continuous Current: 160A
- Peak Current:
- Peak Current:
- Peak Current: 1,050A
- Motor Type: Sensorless Brushless Motor
- Applications: 1/6th Touring Car, Buggy, Truggy and Truck
- Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
- LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
- BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
- Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
- Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
- Size (LxWxH): 70x56x46.5mm
- Weight: 240g
- Programming Port: FAN /PRG Port
Specifications
ESC (Electronic Speed Controller) | |
---|---|
For Motor Type: | Brushless |
Max Voltage: | 22.2 |
Continuous Amps: | 160 |
Motor Connectors: | 6.5mm Bullet |
Battery Connector: | Bare Wire |
LiPo Cut-off: | Yes |
Programmable: | Yes |
Waterproof Design: | Yes |
Cooling Method: | Fan |
BEC Voltage: | 6v,7.4 |
Dual Motor: | No |
Motor | |
---|---|
Motor Type: | Brushless |
Can Length (mm): | 86.5 |
Can Diameter (mm): | 49 |
KV (RPM/V): | 1650 |
Shaft Diameter (mm): | 5 |
(HW38010801)
SKU | HW38010801 |
Barcode # | 6938994407465 |
Brand | HOBBYWING |
