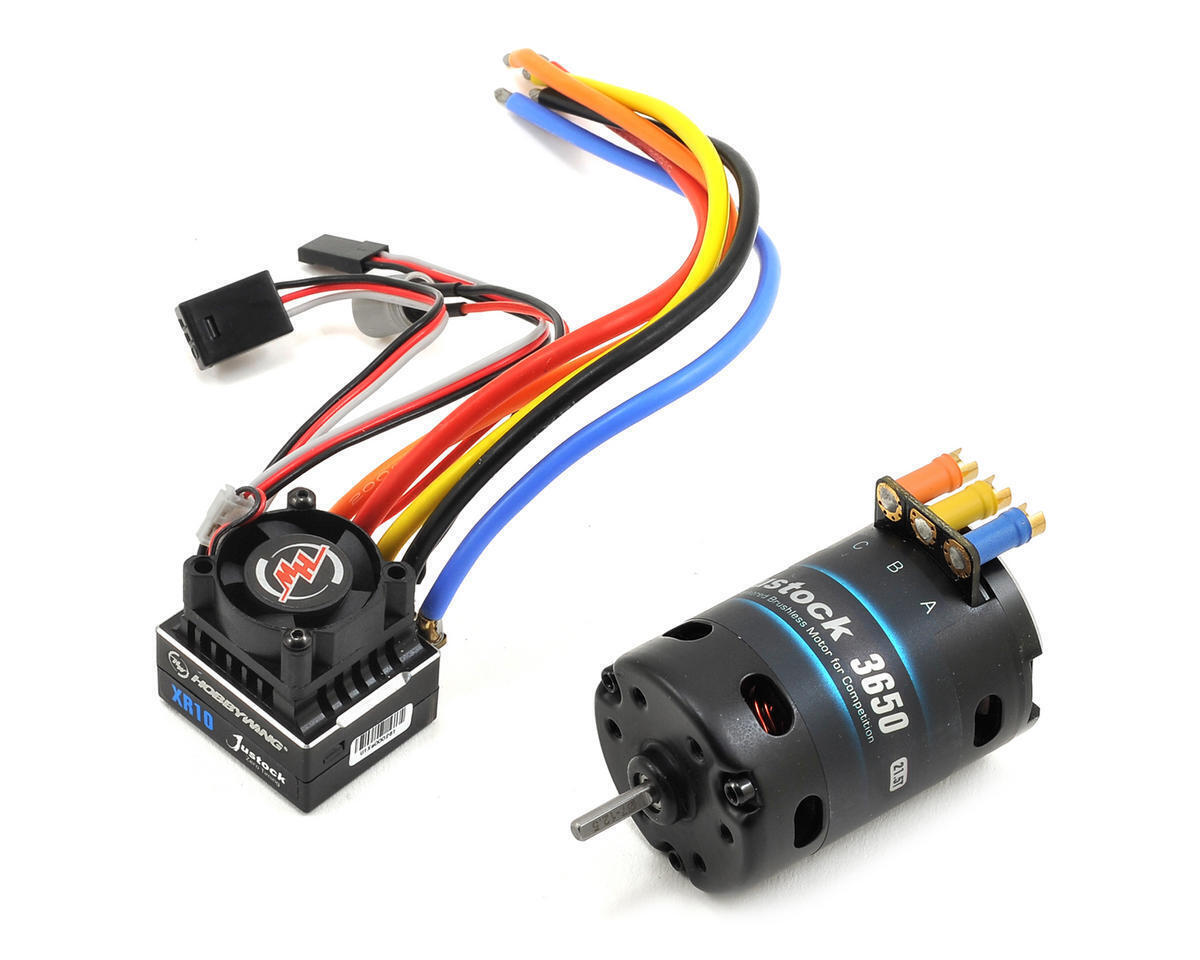

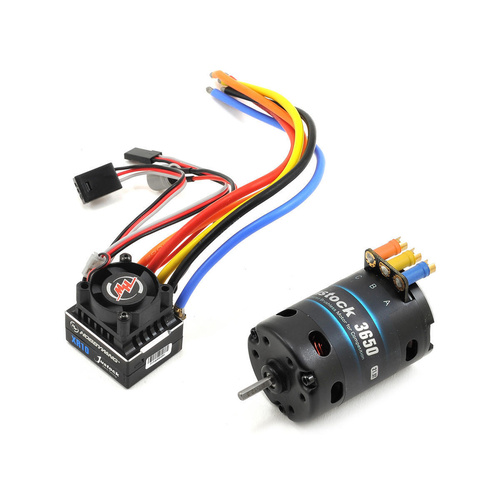

ESC Specification

Cont./Peak Current - 60A/380A

Motor Limit - Sensored / Sensorless Brushless Motor

Applications - 1/10, 1/12 on-road & off-road CLUB competition and normal training

(Motor) KV Limit - Brushless Motor Limit 2S LiPo/4-6S NiMH: ≥8.5T (1/10 on-road), ≥11.5T (1/10 off-road)
Brushless Motor Limit 3S LiPo/8-9S NiMH:≥13.5T (1/10 on-road), ≥17.5T (1/10 off-road) .

LiPo/NiMH Cells - 2-3S LiPo/4-9S NiMH

BEC Output - 6V, 2A (Line-mode BEC)

Fan (Included) - Powered by the stable BEC output voltage of 6V

Connectors - Input End: No, Output End: No.

Size/Weight (mm/g) - 33.5mm(L) x 28.5mm(W) x 30.5mm(H) / 59.8g

ESC Programming - Via the Rx Cable (or Throttle Control Cable)

Motor

Supplied with Juststock 21.5T Fixed timing sensored brushed motor.2300kv
