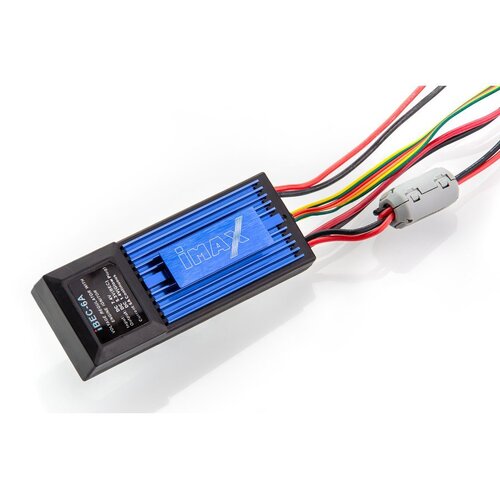

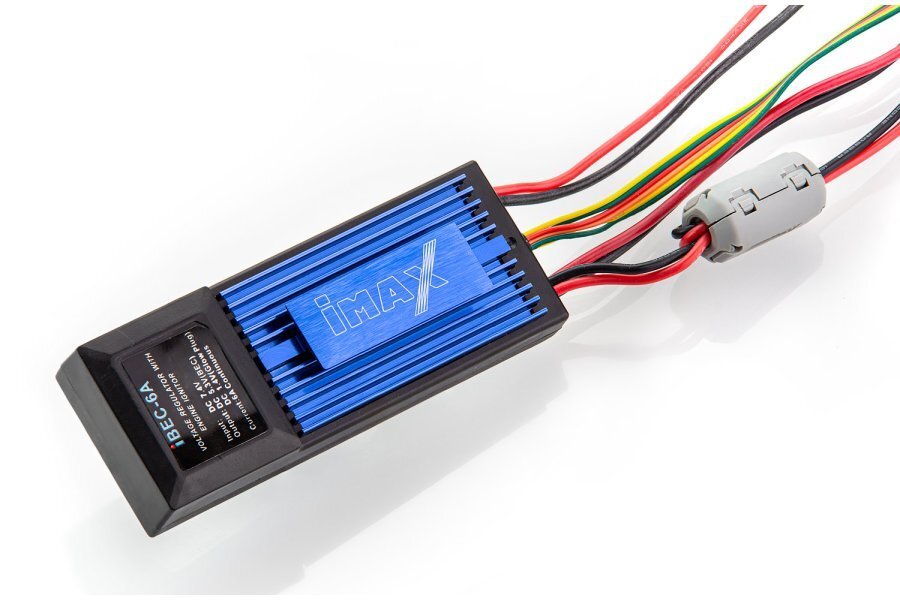

SKYRC Skyrc Imax Bec-6A - GS90001S

Overview

The iMAX iBEC 6A supplies a constant voltage to your receiver & servos using a 2-cell Li-Ion or LiPo battery without noise. An ignition button is included for the glow-plug starter feature.

Features

• Provides power to the receiver, servos
• Internal glow plug ignition system that does not require moving of the clip lead
• The voltage indicating LEDs and ignition indicating LEDs will illuminate and show the status of the battery voltage, and of the plug ignition function when the integrated power is switched on
• The design of the linear regulator results in no interference to the receiver
• The required input power may only consist of a 2-cell Li-Ion or LiPo battery

Specifications

• Input Voltage: DC 7.4V 2-Cell Li-Ion or LiPo battery
• Output Voltage: DC 5.3V (BEC) 1.4V (Glow Plug)
• Max Current: 8A
• Continuous Current: 6A
• Weight: 58g (inc wires)
• Regulator Size: 82x31x14mm
• Control Board Size: 35x25x10mm
