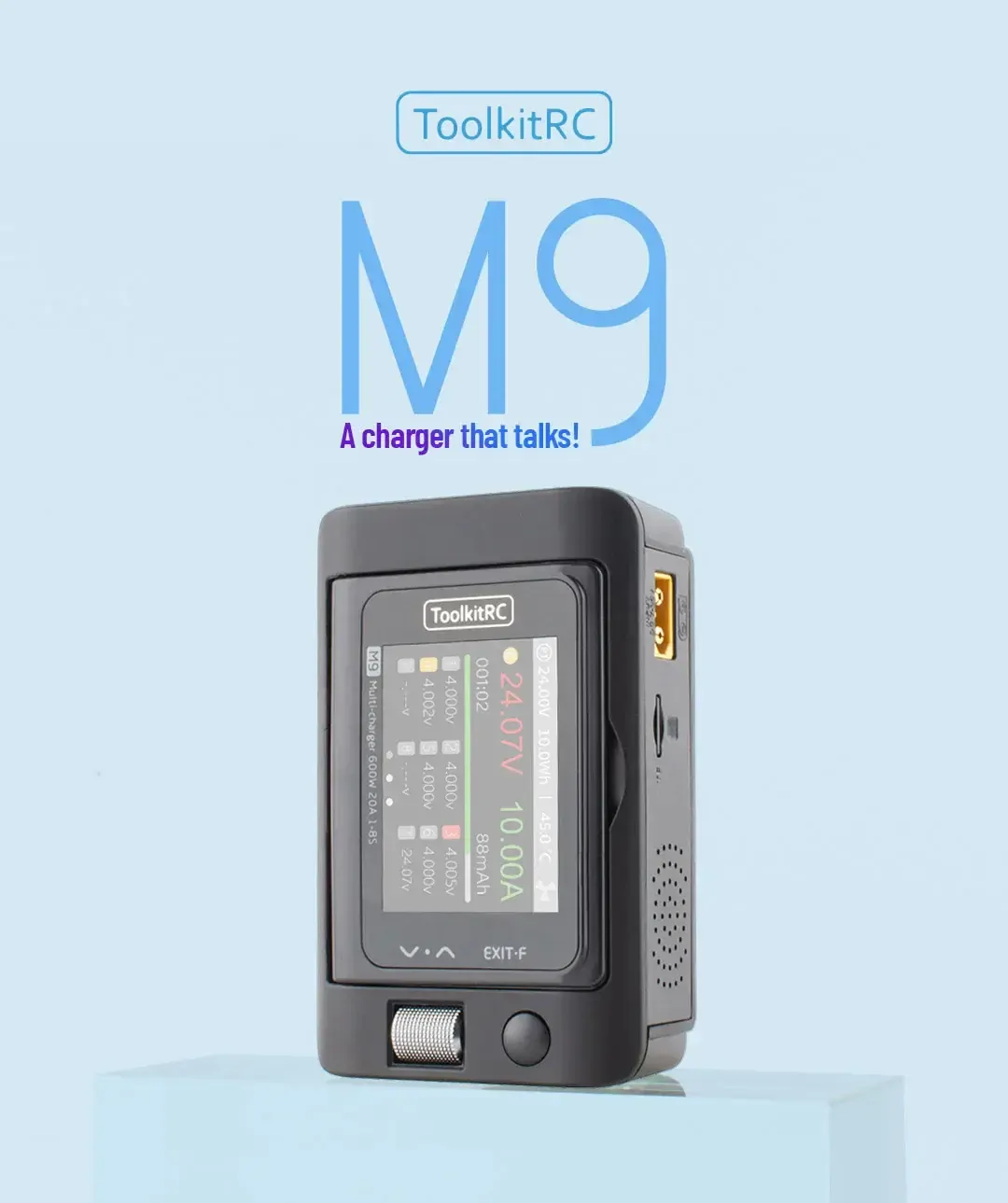

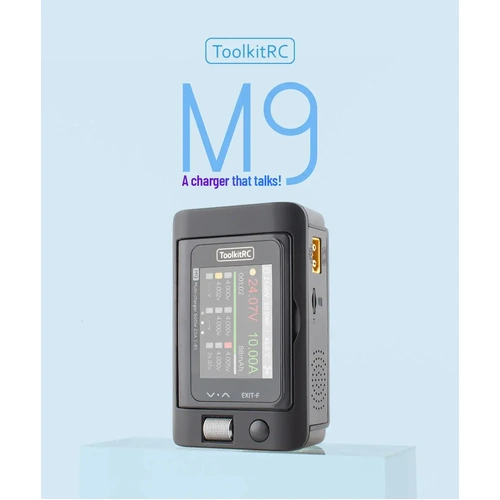

ToolkitRC M9 600W 20A USB Fast Charing DC Smart Charger

Specification:

• Input: 7-35V@MAX35A
• Battery Type: LiPo LiHV LiFe Lion LTO@1-8S NiMh @1-20S Pb @1-10S
• Charging Power: 0.1-20A@600W
• Discharging Power: 0.1-20A@600W Recycle External 0.1-3A@20W Normal Mode
• Balance Current: 1000mA@4.2V
• USB A+C Output: 5-20V@65W PD QC PPS AFC SCP
• Measure:
• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Voltage: 1.0V-5.0V@1-6S
• ESC: 1-20A@1-35V MAX 600W
• Output:
• PWM: 500-2500us @20-1000Hz
• PPM: 880-2200us*8CH @50Hz
• SBUS: 880-2200us*16CH @74Hz
• Power supply: 1.0-20A@1-35V  mode:CC+CV
• LCD: 2.4*IPS RGB 320*240 Pixel
