Description

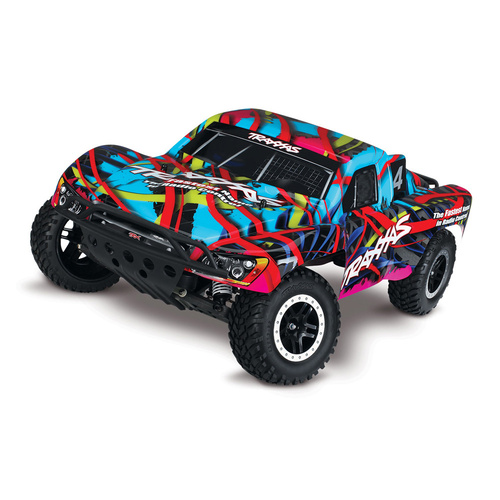

The Traxxas Slash VXL puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Since its introduction, the Slash has set the standard for durability, performance, and technology. Traxxas Stability Management® puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon brushless power provides screaming 60+mph† speed while the advanced TQi™ radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.

Proven, Class-Leading, Velineon Brushless Power

The Velineon Brushless Power system takes the guesswork out of enjoying the benefits of world-class brushless power. The system components work together as an optimized package, engineered from the start to deliver the ultimate in efficiency, speed, and run time. With the Slash VXL, Your battery selection determines your speed and skill level. Velineon accepts the widest range of battery types, including 3-cell Lithium Polymer packs (3S LiPo packs). These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 60mph! Nothing else even comes close. Built-in low-voltage detection in the VXL-3s™ Electronic Speed Control conveniently helps you maintain your LiPo battery packs in top condition.

Features

Traxxas Stability Management® (TSM)
ProGraphix® multi-colored painted body are available in officially licensed (paint and graphics) race replica versions
Scale dimensions and looks of actual short course off-road race trucks
The Slash VXL reaches speeds in excess of 60+mph*
Powered by the Velineon® Brushless Power System
Traxxas iD-Equipped High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
Maxx® Cable 12-gauge wire
Velineon VXL-3s Electronic Speed Control
LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
Sport Mode – Forward / Brake / Reverse
Race Mode – Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
Velineon 3500 Brushless Motor
Consistent, high-power output, run after run
Low-maintenance, unique Traxxas design
Efficient, high-speed ball bearings
Precision-balanced rotor
TQi 2.4GHz transmitter
Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
Multi-Function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
High 13ms frame rate and near-zero latency for responsive control
TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security, integrated telemetry ports and TSM
Race in dirt, mud, water, and snow thanks to Traxxas’ innovative waterproof electronics
Digital high-torque waterproof steering servo
125 oz-in of torque and 0.16-second speed
O-ring sealed watertight receiver box
Speed control, receiver, and steering servo are securely fastened to chassis
Long-wheelbase fiber-composite chassis
13.2 inch wheelbase
Easy access battery compartment
Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs
Chassis nerf bars absorb impact and support the body
Scale front and rear tube-style bumpers
Body mounts incorporate reinforced washers for additional body support
Efficient Magnum 272™ metal-gear transmission with ball bearings
Sealed gearbox protects the transmission with beefed up motor guard for extra protection
Revo®-Spec Torque-Control™ slipper clutch system
External gear cover with easy slipper access
Reliable composite planetary gear differential with a steel ring gear
Heavy-duty telescoping U-joint driveshafts and yokes
Heavy-duty 4mm steel turnbuckles and captured rod ends
Captured rod ends won't pop off for superior durability
Precision hex hardware throughout
Efficient rubber-sealed ball bearings
Fully adjustable Ultra Shocks™ with X-ring technology
Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
Dual-bellcrank steering with integrated servo saver
Heavy-duty telescoping universal-joint driveshafts, built for brushless power
New brushless-specific suspension sttings for enhanced high-speed handling and stability
ProGraphix® painted race replica bodies
Slash VXL is backed by unparalleled Traxxas support and parts availability
SLASH VXL (#58076-4) SPECS

Length                   22.36 inches (568mm)
Front Track            11.65 inches (296mm)
Rear Track             11.65 inches (296mm)
Weight                   90.37oz (2.562kg)
Height (overall)               8.425 inches (214mm)
Wheelbase             13.2 inches (335mm)
Front Shock Length                   Long
Rear Shock Length                    XXLong
Front Tires             Slash 2.2 (Pre-Glued with Inserts)
Rear Tires              Slash 2.2 (Pre-Glued with Inserts)
Front Wheels                   2.2" Satin or Chrome-Finish
Rear Wheels          2.2" Satin or Chrome-Finish
Speed Control Type                   VXL-3s™ Electronic Speed Control
Motor (electric)                Velineon® 3500 Brushless
Gear Ratio (internal)                  2.72 (final drive: 10.2)
Differential Type             Steel Composite Planetary
Gear Pitch              48-Pitch
Transmission                   Metal Gear Magnum 272™
Steering                 Bellcrank
Chassis Type                   Long-wheelbase fiber-composite chassis
Chassis Material               Composite Nylon
Center Ground Clearance           3.5 inches (89mm)
Top Speed             60+mph*
Skill Level             1
Radio System (transmitter)                  TQi™ 2.4GHz (2-channel)
Radio System (receiver)             Traxxas Stability Management® (#6533)
Officially-Licensed Race Replicas                  Traxxas, Race Edition (Traxxas Blue)
Traxxas, Race Edition (Traxxas Red)
**Battery Tray Dimensions                 165mm x 49.5mm x 23mm, 25mm
Required                NiMH or LiPo Battery, Charger, 4 "AA" batteries (transmitter)
Traxxas Stability Management®

Traxxas Stability Management TSM® makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead fullthrottle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep Traxxas trucks arrow straight until they come to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, braking assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it!

Everything is waterproof and Traxxas-tough as you’d expect. This is short course performance on a whole new level!

TSM BENEFITS

TSM makes Traxxas vehicles easier to drive, particularly on loose surfaces
TSM makes driving more fun by allowing the driver to accelerate harder and drive faster with much greater control
TSM works to stabilize vehicles over rough surfaces as the gyro effect of the spinning front tires continues to “steer” when the vehicle is in the air
TSM dramatically improves braking performance, preventing the vehicle from spinning out
TSM allows faster cornering speeds
TSM never restricts throttle (or fun!)
TSM allows the driver to accelerate harder when exiting a turn
TSM works invisibly in the background
The driver maintains their connected feel with the vehicle
The amount of TSM assistance is fully adjustable
TSM can be turned off or adjusted from the TQi Transmitter
TSM is fully compatible with Traxxas Link
TSM does not require any complicated set up or instructions.
Compatible with Traxxas Link Wireless Module (2-Ch)

Traxxas Slash VXL is equipped with the world's most advanced Ready-To-Race® radio system. The Traxxas® TQi™ arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Traxxas Stability Management (TSM), Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

Traxxas Link Wireless Module Compatible

The TQi's most important new feature may already be in your pocket. The TQi can be equipped with an Traxxas Link Wireless Module (#6511, sold separately) that turns your Android, iPad® iPhone® or iPod touch® (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.

Velineon® 3500 Brushless Motor

The Velineon 3500 Brushless Motor is precision-matched for use in the Slash VXL, delivering the perfect balance of brutal horsepower and efficiency. The sensorless design works with the sophisticated circuitry in the VXL-3s Electronic Speed Control for smooth starts and precise control, without the need for additional sensors and wiring. Since there are no brushes or commutator to cause friction and wear, Velineon brushless power is always full of muscle, run after run.

Velineon® VXL-3s ESC

The Velineon VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy operation that gives you all the control you need for maximum fun. Quickly choose from 3 drive profiles in exactly the same manner as other Traxxas electronic speed controls (such as the XL-5). Profiles include: Sport, Race, and Training Mode (patented). Training Mode™ limits full-throttle power to 50% allowing young or new drivers to safely develop their control skills before unleashing the full-throttle capability of the Velineon system. Slash VXL's performance can be tailored for drivers of any age and experience. High-frequency transistors and advanced circuit design deliver incredibly smooth and refined throttle control. High-current capacity (320 amps peak) and two-stage thermal protection frees you from motor limits.

Traxxas High-Current Connector

The patented Traxxas High-Current Connectors are designed to handle high-current applications and funnel maximum power to your vehicle’s electronics. Traxxas High-Current Connectors let you get the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.

Maxx Cable 12-Gauge Wire

This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the electronic speed control. The patented Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.

Sealed Watertight Receiver Box

Slash VXL's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the patented receiver box.

Digital High-Torque Waterproof Steering Servo

A race truck needs a powerful steering servo for responsive performance. The waterproof steering servo (#2075) uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for wheel-to-wheel racing in the back yard or on the track.

New Dual-Bellcrank Steering

With Integrated Servo Saver

Originally developed for Slash 4X4, the Slash VXL's steering bellcranks feature optimized geometry and a cam-type servo-saver to protect the servo's gears from crash damage without compromising steering precision.

New Heavy-Duty Driveshafts

Brutal brushless horsepower would stress ordinary drivetrain components to their limits, so Slash VXL steps up with new, extra-strong telescoping universal-joint driveshafts. In combination with Slash VXL's Brushless Ready steel-gear transmission, the result is a Traxxas-Tough driveline that makes certain every watt of Velineon power is transformed into rocket-like thrust.

Securely Mounted Electronics

The ESC, receiver, and steering servo are screwed to the chassis for ultimate mounting security. There's no servo tape to loosen over time from dirt, heat, water, and collisions.

Long-Wheelbase Chassis

Designed from the ground up, the new chassis features a 13.2" wheelbase while offering over 3.5 inches inches of ground clearance. The new chassis includes drain holes and a battery tray channel for routing servo wires to the receiver.

Adjustable Battery Hold Down

The unique chassis design allows the use of 6-cell stick or side-by-side style battery packs and 7-cell stick, side-by-side, and hump battery packs for unmatched versatility. (Batteries sold separately) The extended chassis enables the various battery packs to be positioned forward or backward for front/rear weight bias tuning. An optional battery hold down kit is available for use with oversized batteries.

Integrated chassis nerf bars offer side body support for door to door racing action. The body mounts incorporate reinforced washers to support the short course truck body during big-air jumps and high-speed runs.

Hex Hardware

Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. The Slash VXL is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won't pop off.

Steel-Composite Planetary Gear DifferentialSteel-Composite Planetary Gear Differential

The composite Traxxas planetary gear differential now features a steel ring gear with a nylon housing for long life. It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding torque to the wheels.

Advanced Revo technology is utilized to manage the massive power from the Velineon brushless motor. The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears can be removed and replaced without altering the slipper adjustment.

The Slash VXL features heavy-duty ball bearing front steering blocks and rear hub carriers. They utilize large 5x11mm ball bearings for long-term precision performance, smooth operation, and increased durability.

The race-tuned progressive rate springs soak up the small bumps as a softer spring would, but when the conditions get rough and the jumps get big, the progressive rate springs step up to the challenge by getting firmer as the suspension is compressed. The long-lasting, white powder coated finish sets the Slash VXL apart from the pack.

Metal Gear Magnum 272™ Transmission (cut-away)Metal Gear Magnum 272™ Transmission

The Slash VXL's Magnum 272 transmission is assembled with all metal gear internals riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power is delivered to the rear wheels via durable telescoping U-joint driveshafts for maximum efficiency and articulation. The bulletproof Torque-Control slipper clutch and metal gear Magnum transmission are ready to handle any power system upgrade including the Extreme Power of the Velineon Brushless Power System.

The Slash VXL's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.
