Full-sensored Mode Supported



The ESC can work the full-sensored mode at all times (when pairing it with a HOBBYWING matching motor).

Efficient heat dissipation system with lower temperature rise



The frameless fan design is a patented technology. The rapid transmission of internal heat to the integrated housing radiator are made up of high airflow from the side of the fan and a copper thermal conduction sink on the internal power plate. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition.

Durable frameless fan



The all-new frameless fan blades uses a special material and are extremely hard and reliable. It greatly reduces the damage of the fan blades caused by the impact of small stones, sand

and other foreign objects. Thus, reduces the failure rate of the fan than compared with the traditional pbt fan.

1/8th power system, Boost & Turbo Timing Technology

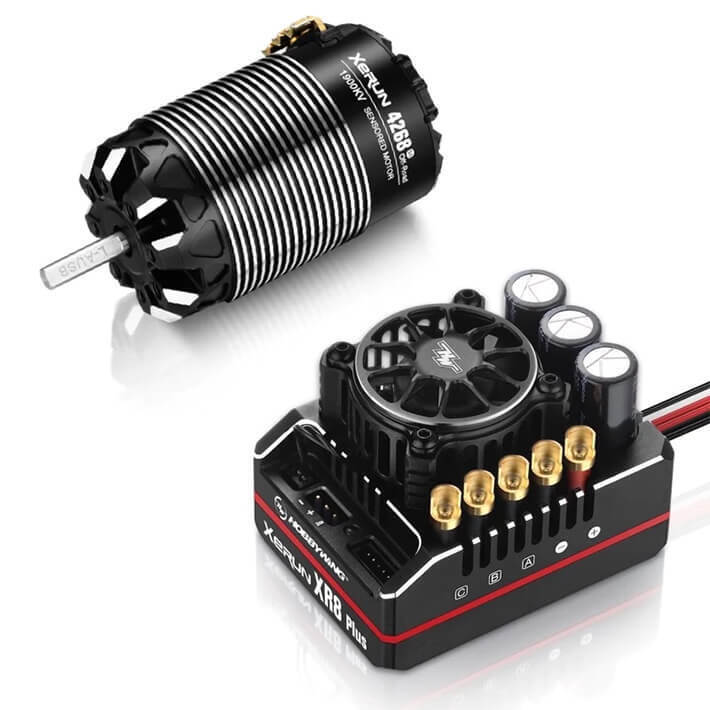

This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 1/8th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 4268/4274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.

Internal Battery-Reverse Polarity Protection Circuit



With the Built-in Reverse Voltage Protection circuit, ESC's internal parts are all protected from Cross Connection of battery power.

RPM speed limit function



The ESC is able to support up to 6 different speed (RPM) selections to meet the needs and demands of various competitions in the world. It can be programmed through using the latest OTA Bluetooth module or the traditional 3in1 program box.

Programming / Upgrading / Data reading wirelessly



With Hobbywing's OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and heck relevant data of the ESC.

Easy Obtain Running Status with Real-time Data Recording Function



With Hobbywing's OTA module, Connect the HW Link App to the ESC and open the real-time data recording function, to check the throttle, voltage, current, temperature, RPM and other data in real-time. Easy obtain running status of ESC and motor.



Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!

Multiple Programmable Items



The ESC contains nearly 30 adjustable parameters, including Throttle PWM Frequency, Brake Frequency, Softening Value / Range, Boost / Turbo Timing which are commonly used in 1/10th XR10 Pro series brushless ESC. It can accurately adjust the power settings to suit any driving style and track surface. Parameter are optimized for top-level competition applications.



Note: Use appropriate settings provided by the factory or team drivers. Check operating temperature in order to maximize your electronics. The wrong settings may damage the ESC/motor!

Capacitor Thermal Protection



Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Super Internal BEC



The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step:0.1V) allows the use of various standard servos, high voltage servos.

Excellent dustproof performance



The ESC is IP5X. Its excellent dustproof performance can easy to overcome various On-Road & Off-Road contest track.

Custom ultra-soft 11AWG silicone wire



The ultra-soft 11AWG silicone wire is specially chosen for this product. The wire is ultra-flexible and low in resistance, making it the perfect combination to for your electronics.

Customized solder tabs, easy to solder



The solder tabs are specially customized by Hobbywing. They are made wider, a larger surface area in order to.

Specifications



Type



    1/8th

    Brushless

    Sensored



Specification



    Cont./Peak: 200A/1080A

    Input Voltage: 2-6S LiPo

    BEC Output: 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode)



Wires & Connectors



    Wires & Connectors: Black-11AWG-200mm*2

    Output Wires: Black-11AWG-200mm*3



Fan



    Size: 30x30x10mm

    Voltage Range: 5-8.4v

    Powered By: BEC



ESC Programming



    OTA Programmer: Supported

    LCD Program Box: Supported

    Programming Port: Independent programming port



Firmware



    Upgradable: Yes



Dimensions



    Size: 56.1mmx42.1mmx38.5mm

    Weight: 122g(w/wires)



Applications



    Applications: SL BL Motors / SD BL Motors

    Vehicles: 1/8th On-Road/Off-Road/Truggy Racing

    KV Rating/T Count: 4S LiPo: 4268/42743000KV or 6S LiPo42742400KV

(HW38020500)

SKU HW38020500
Barcode # 6938994416481
Brand HOBBYWING
