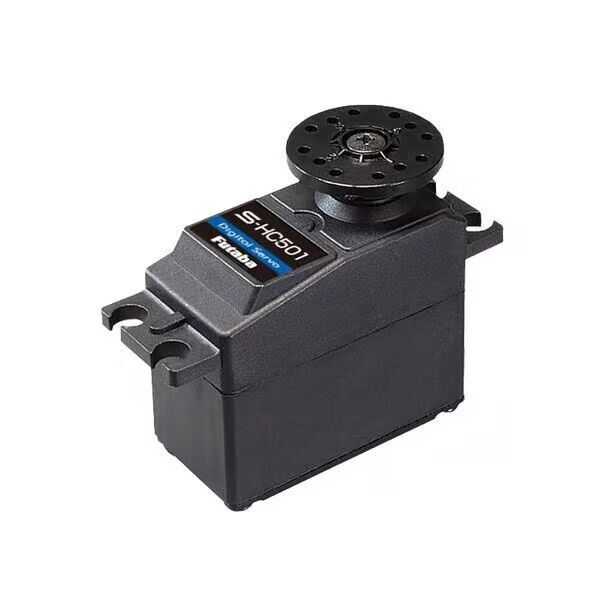

S-HC501– S.Bus2 High-Voltage Standard Swash Helicopter Servo

Swash Coreless Digital Servo

FEATURES:
– Suitable for all purpose RC helicopters.
– Programmable/HV Coreless Servo.
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Upper/middle/bottom case: Resin
– 2S LiPo Suitable

SPEED:
0.10 sec/60° at 6.6V
0.09 sec/60° at 7.4V

TORQUE:
12.5 kgf/cm at 6.6V
173.6 ozf/in at 6.6V

13.8 kgf/cm at 7.4V
191.6 ozf/in at 7.4V

SIZE:
40 mm x 20 mm x 36.6 mm
1.57 in x 0.78 in x 1.44 in

WEIGHT:
54 g
1.90 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY USE
