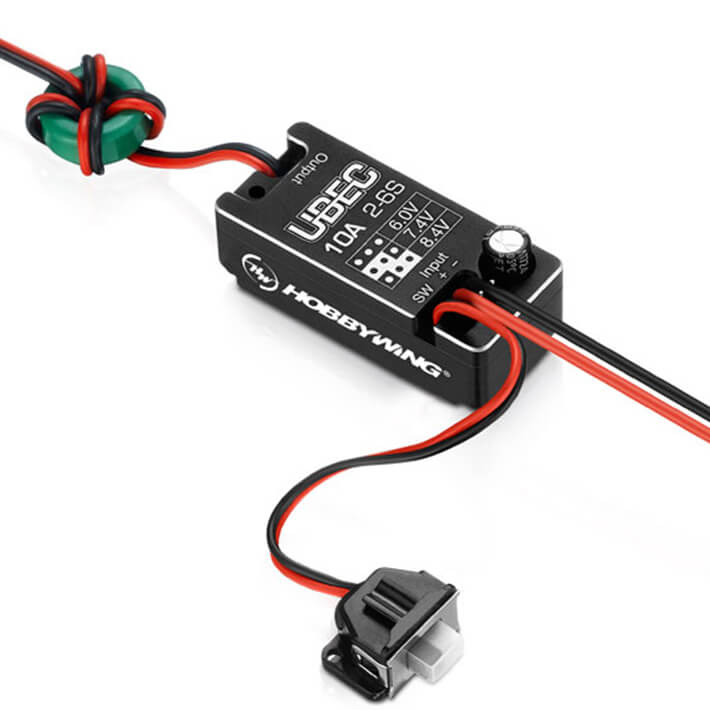

The Hobbywing UBEC 10A V2 is a high-performance external BEC designed for RC crawlers, trucks, scale rigs and other electric RC vehicles requiring stable power delivery. Using an efficient DC-DC regulator with over 90% conversion efficiency, it converts 2-6S LiPo battery voltage into a reliable output for high-voltage servos, winches, lighting systems and onboard accessories.

Featuring selectable 6.0V, 7.4V and 8.4V output voltages, the UBEC delivers up to 10A continuous current and 15A peak current, making it ideal for powerful digital servos and demanding RC applications. The rugged aluminium housing improves heat dissipation while reducing electromagnetic interference, and the IP67 waterproof and dustproof design ensures dependable operation in harsh off-road conditions.

Features

• Supports 2-6S LiPo input (6V-25.2V)
• Adjustable output voltage: 6.0V / 7.4V / 8.4V
• 10A continuous current, 15A peak current
• High-efficiency DC-DC regulation (>90%)
• IP67 waterproof and dustproof construction
• Over-current, short-circuit and thermal protection
• Compact aluminium case for improved cooling
• Ideal for crawlers, trucks, scale models, winches and HV servos

Specifications

• Part Number: HW30603003
• Input Voltage: 6V-25.2V (2-6S LiPo)
• Output Voltage: 6.0V / 7.4V / 8.4V
• Output Current: 10A Continuous / 15A Peak
• Dimensions: 45 × 20 × 16.2mm
• Weight: 34g (including wires)
