PLATINUM-150A-V5 - HOBBYWING

Brushed/Brushless High Voltage/Regular
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port
Firmware	Firmware Upgrade
Size & Weight	Size Weight

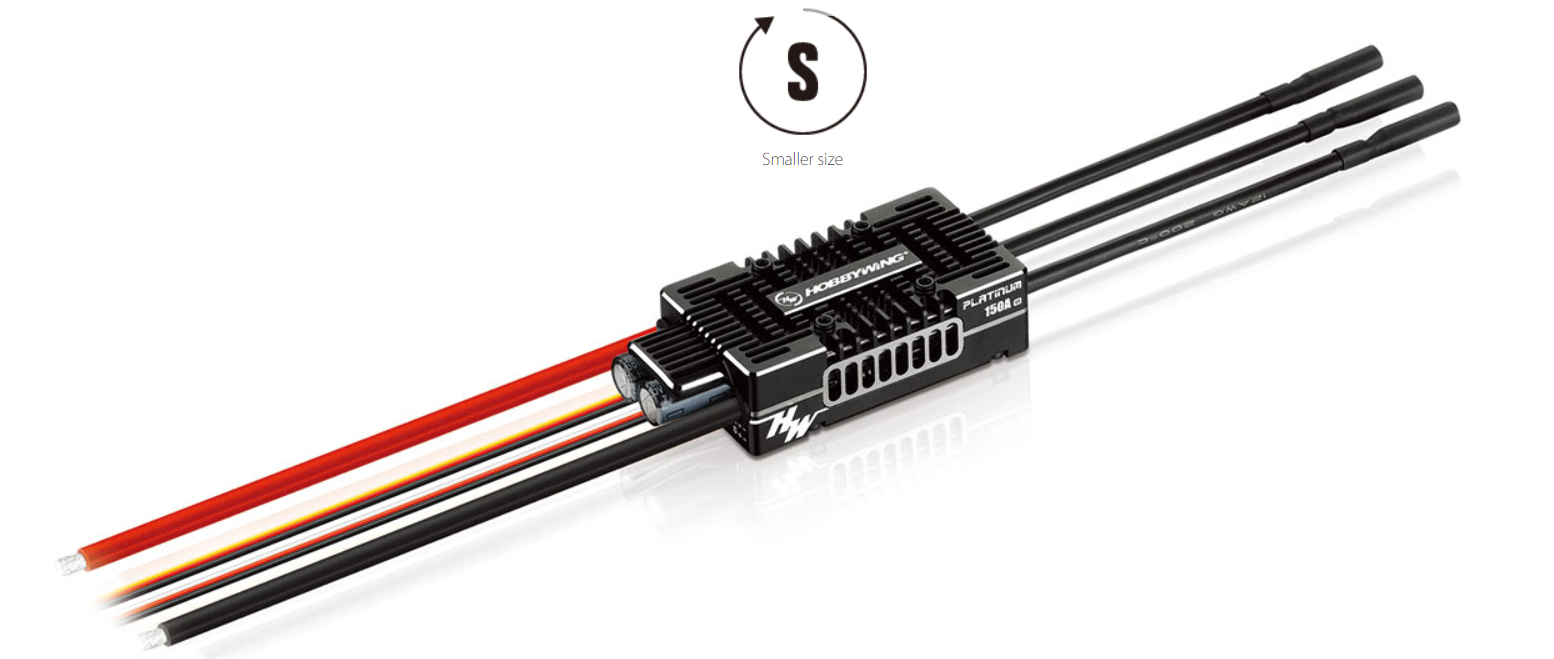

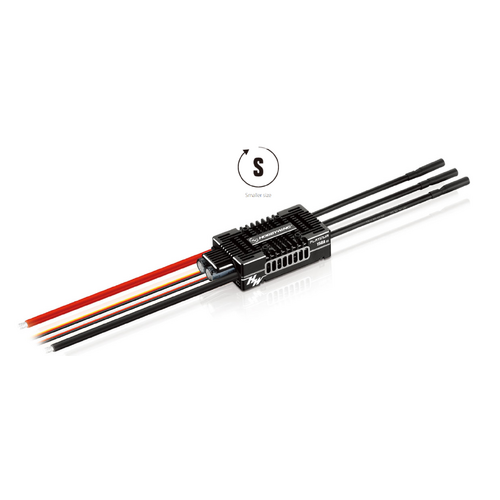

Product Name		Platinum 150A V5
Product Number		30203500
Type	Brushed/Brushless High Voltage/Regular	BL Regular
Specifications	Cont./Peak Current Input Voltage BEC Output	150A/180A 3-8S LiPo Switch Mode:5-8V,10A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-10AWG-150mm1/Black-10AWG-150mm1 Black-12AWG-120mm*3 No 4.0mm Gold Connectors (Female)
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port	Not Supported Not Supported Not Supported Supported Supported Separate Program Port
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	83x37x21mm 140g
